Home > Products > Switches > Rocker Switches > GW22RHP

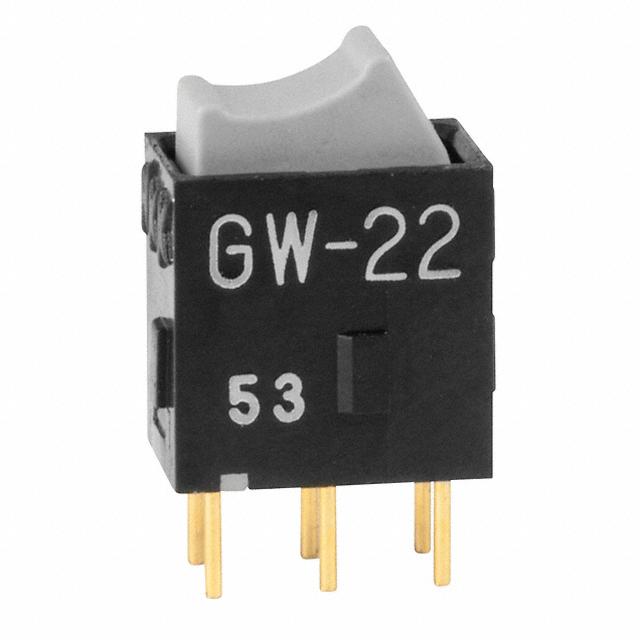

GW22RHP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW22RHP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW22RHP
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 47373 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.111	$1.084	$1.032	$0.981
	$0.929	$0.903	$0.877	$0.774

Product parameter
Data sheet

Product parameter

Part Number	GW22RHP	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47373 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Sealed - Flux Protection
Electrical Life	50,000 Cycles	Detailed Description	Rocker Switch DPDT 0.4VA (AC/DC) 28V Through Hole
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Gray
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
