Home > Products > Switches > Rocker Switches > GW22LBP

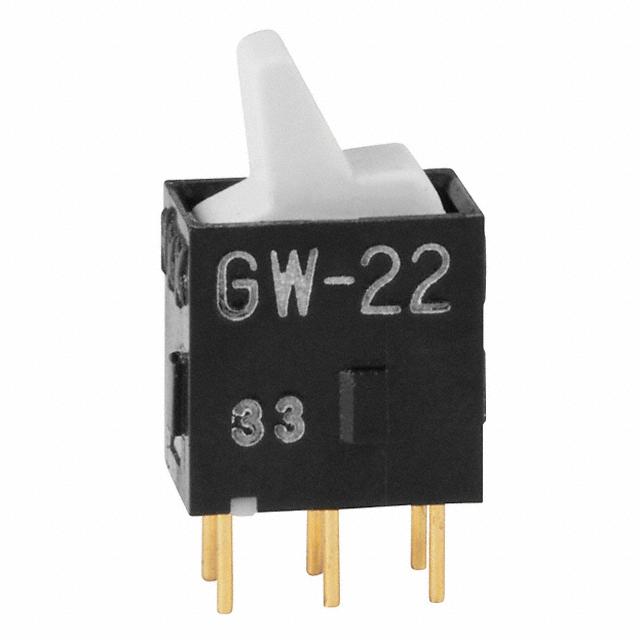

GW22LBP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW22LBP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW22LBP
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 46219 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.131	$1.104	$1.051	$0.999
	$0.946	$0.92	$0.893	$0.788

Product parameter
Data sheet

Product parameter

Part Number	GW22LBP	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46219 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	360-2803 GW22LBP-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Sealed - Flux Protection	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch DPDT 0.4VA (AC/DC) 28V Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	White	Circuit	DPDT
Actuator Type	Paddle	Actuator Marking	No Marking
