Home > Products > Transformers > Switching Converter, SMPS Transformers > 750313082

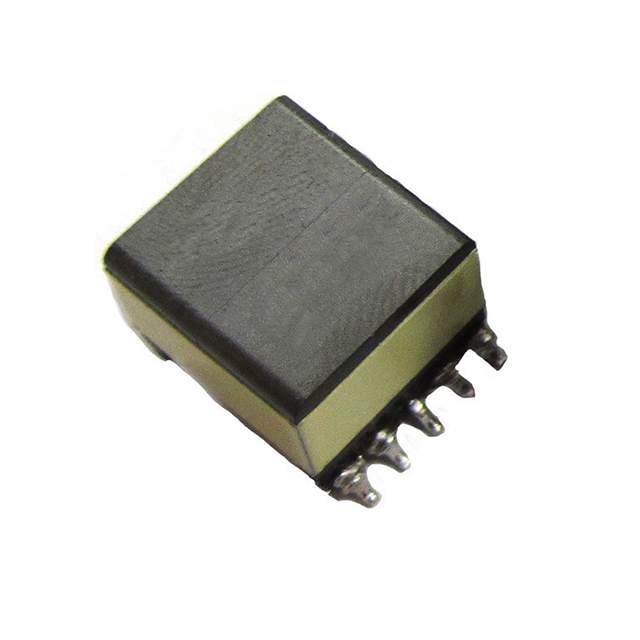

750313082

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750313082 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750313082
Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15439 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$2.844	$2.702	$2.512	$2.275

Product parameter
Data sheet

Product parameter

Part Number	750313082	Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15439 pcs	Data sheet	750313082 Drawing
Category	Transformers	Voltage - Primary	40 ~ 57V
Voltage - Isolation	3000Vrms	Voltage - Auxiliary	12V @ 10mA
Type	For DC/DC Converters	Style	-
Size / Dimension	0.530" L x 0.699" W (13.46mm x 17.75mm)	Series	MID-POELT
Packaging	Cut Tape (CT)	Other Names	1297-1225-1
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	37µH @ 10kHz
Height - Seated (Max)	0.500" (12.70mm)	Frequency	250kHz
Chipset Manufacturer	Linear Technology	Applications	Power Over Ethernet (PoE)
