Home > Products > Transformers > Switching Converter, SMPS Transformers > 750313309

750313309

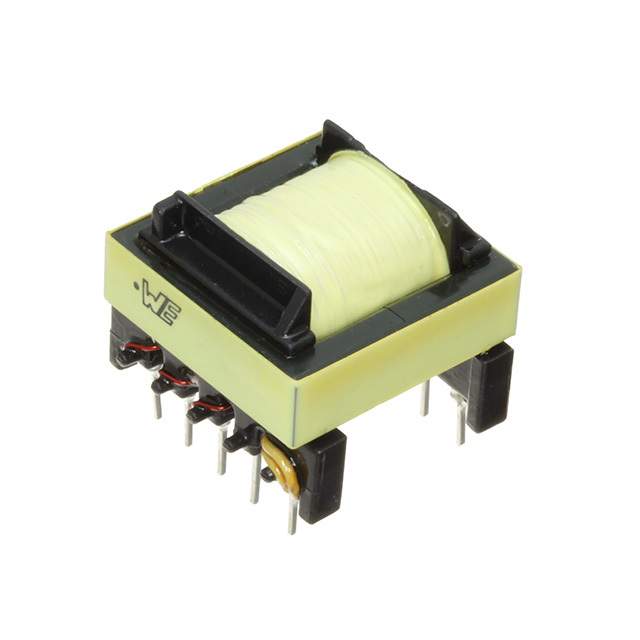

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750313309 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750313309
Manufacturer	Midcom / Wurth Electronics
Description	OFFLINE TRANSFORMER WE-UNIT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15599 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	200 pcs
Reference Price (In US Dollars)	$2.996	$2.807	$2.685	$2.441	$2.197

Product parameter
Data sheet

Product parameter

Part Number	750313309	Manufacturer	Midcom / Wurth Electronics
Description	OFFLINE TRANSFORMER WE-UNIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15599 pcs	Data sheet	750313309 Drawing
Category	Transformers	Voltage - Isolation	1250Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Style	-	Size / Dimension	0.707" L x 0.799" W (17.96mm x 20.30mm)
Series	MID-OLON	Other Names	1297-1281
Operating Temperature	-40°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	-
Inductance @ Frequency	120µH @ 10kHz	Height - Seated (Max)	0.563" (14.30mm)
Frequency	110kHz	Chipset Manufacturer	On Semiconductor
Applications	Flyback Converters
