750312723

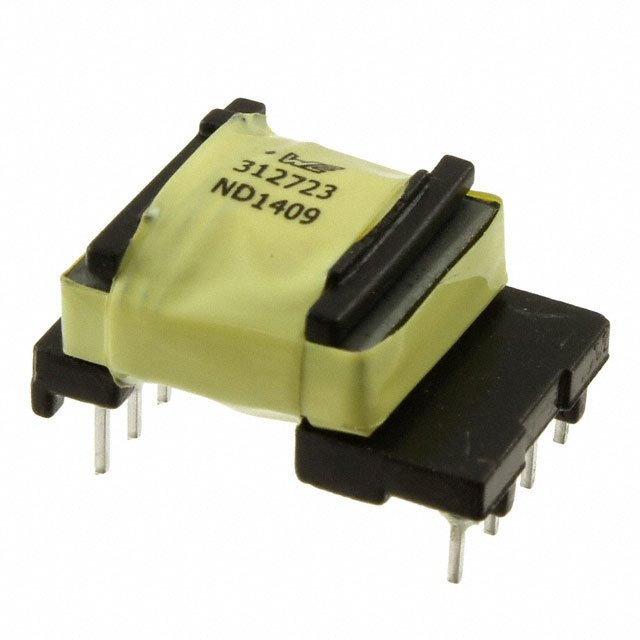

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750312723 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 750312723 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 750312723 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | FLYBACK XFRM WE-FB T-WIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $1.856 | $1.831 | $1.716 | $1.545 | $1.373 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 750312723 | Manufacturer | Midcom / Wurth Electronics |
|---|---|---|---|
| Description | FLYBACK XFRM WE-FB T-WIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22183 pcs | Data sheet | 750312723 Drawing |
| Category | Transformers | Voltage - Primary | 85 ~ 265V |
| Voltage - Isolation | 4500Vrms | Voltage - Auxiliary | 20V |
| Type | For DC/DC Converters | Size / Dimension | 0.560" L x 0.805" W (14.22mm x 20.45mm) |
| Series | WE-FB, MID-OLTI | Packaging | Tray |
| Other Names | 1297-1022 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | UCC287xx, UCC289xx | Inductance @ Frequency | 925µH @ 10kHz |
| Height - Seated (Max) | 0.415" (10.54mm) | Frequency | 130kHz |
| Footprint | 0.560" L x 0.805" W (14.22mm x 20.45mm) | Chipset Manufacturer | Texas Instruments |
| Applications | Flyback Converters |
