Home > Products > Transformers > Switching Converter, SMPS Transformers > 750312870

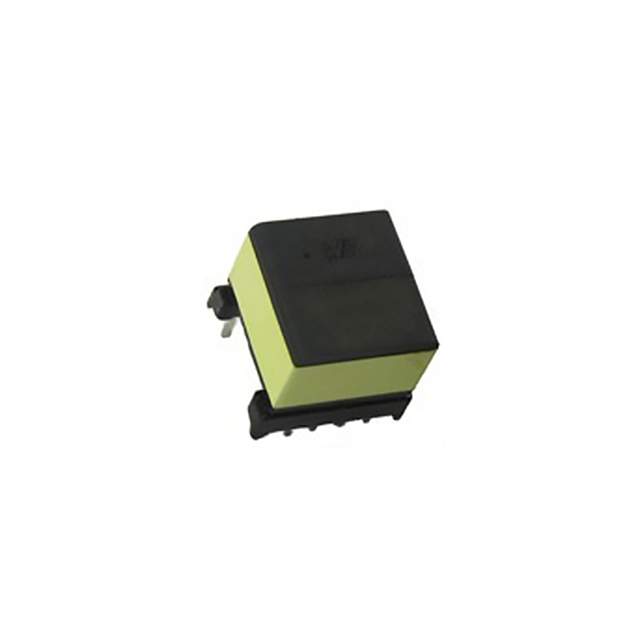

750312870

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750312870 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750312870
Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 19108 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	200 pcs
Reference Price (In US Dollars)	$2.449	$2.327	$2.164	$1.96	$1.797

Product parameter
Data sheet

Product parameter

Part Number	750312870	Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19108 pcs	Data sheet	750312870 Drawing
Category	Transformers	Voltage - Isolation	4000Vrms
Type	For AC/DC Converters	Style	-
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)	Series	WE-UNIT, MID-OLNXP
Other Names	1297-1276	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Height - Seated (Max)	0.500" (12.70mm)
Frequency	100kHz	Chipset Manufacturer	NXP Semiconductors
Applications	Flyback Converters
