750312558

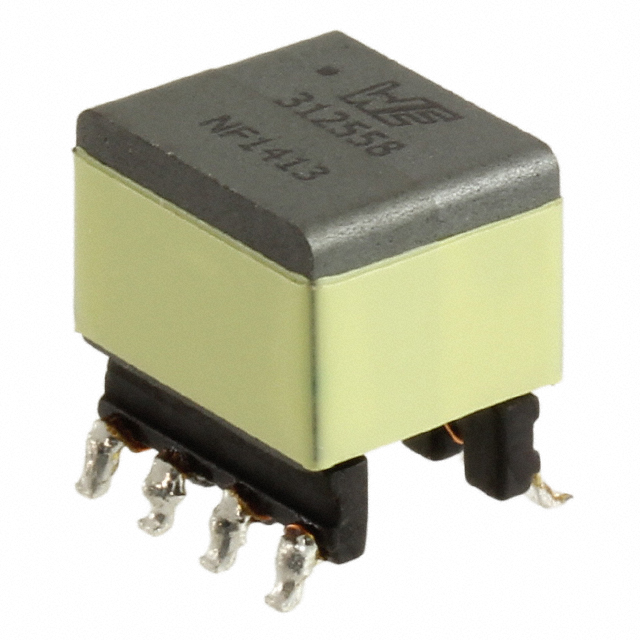

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750312558 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 750312558 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 750312558 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | FLYBACK TRANSFORMER WE-FB LT8300 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.497 | $1.478 | $1.386 | $1.247 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 750312558 | Manufacturer | Midcom / Wurth Electronics |
|---|---|---|---|
| Description | FLYBACK TRANSFORMER WE-FB LT8300 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27948 pcs | Data sheet | 750312558 Drawing |
| Category | Transformers | Voltage - Primary | 36 ~ 72V |
| Voltage - Isolation | 1500Vrms | Voltage - Auxiliary | - |
| Type | For DC/DC Converters | Size / Dimension | - |
| Series | WE-FB, MID-FLYLT | Packaging | Cut Tape (CT) |
| Other Names | 1297-1020-1 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | LT8300 | Inductance @ Frequency | 300µH @ 10kHz |
| Height - Seated (Max) | 0.420" (10.69mm) | Frequency | 70kHz |
| Footprint | 0.385" L x 0.360" W (9.78mm x 9.14mm) | Chipset Manufacturer | Linear Technology |
| Applications | Flyback Converters |
