Home > Products > Circuit Protection > Fuseholders > 04820010ZXBF

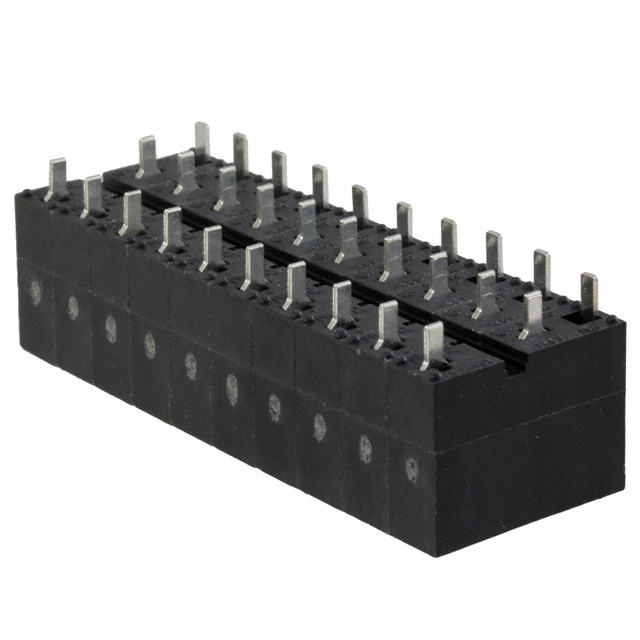

04820010ZXBF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 04820010ZXBF with confidence from Components-World.HK, 1 Year Warranty

Dowload 04820010ZXBF Details in PDF

Request a Quote

Part Number	04820010ZXBF
Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5967 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$5.796

Product parameter
Data sheet

Product parameter

Part Number	04820010ZXBF	Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5967 pcs	Data sheet	482 Series
Category	Circuit Protection	Voltage	125V
Termination Style	PC Pin	Series	482
Orientation	Vertical	Number of Circuits	10
Mounting Type	PCB	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Fuseholder Type	Holder	Fuse Type	Blade
Fuse Size	0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)	For Use With/Related Products	481 Alarm Fuse
Detailed Description	Fuse Holder 15A 125V 10 Circuit Blade PCB	Current Rating	15A
Contact Material	Beryllium Copper	Contact Finish	Tin
