Home > Products > Circuit Protection > Fuseholders > 04820010ZXB

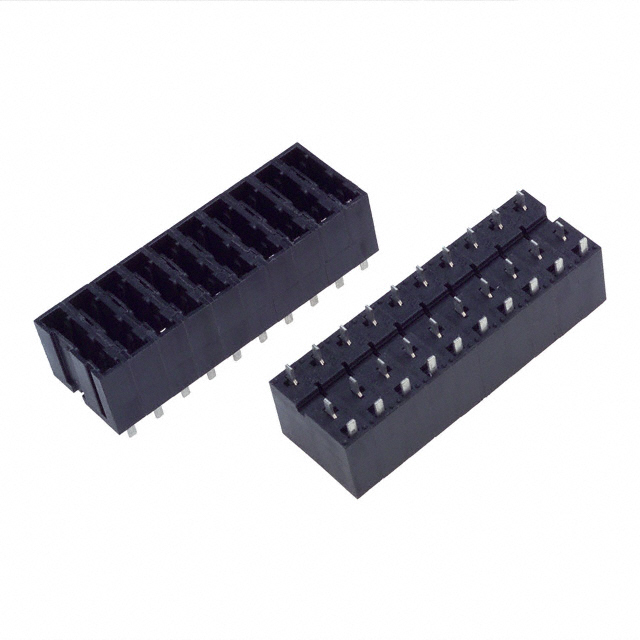

04820010ZXB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 04820010ZXB with confidence from Components-World.HK, 1 Year Warranty

Dowload 04820010ZXB Details in PDF

Request a Quote

Part Number	04820010ZXB
Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6075 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$5.781

Product parameter
Data sheet

Product parameter

Part Number	04820010ZXB	Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6075 pcs	Data sheet	482 Series
Category	Circuit Protection	Voltage	125V
Termination Style	PC Pin	Series	482
Other Names	F1409	Orientation	Vertical
Number of Circuits	10	Mounting Type	PCB
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuseholder Type	Holder
Fuse Type	Blade	Fuse Size	0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
For Use With/Related Products	481 Alarm Fuse	Detailed Description	Fuse Holder 15A 125V 10 Circuit Blade PCB
Current Rating	15A	Contact Material	Beryllium Copper
Contact Finish	Tin
