Home > Products > Circuit Protection > Fuseholders > 04820007ZXPF

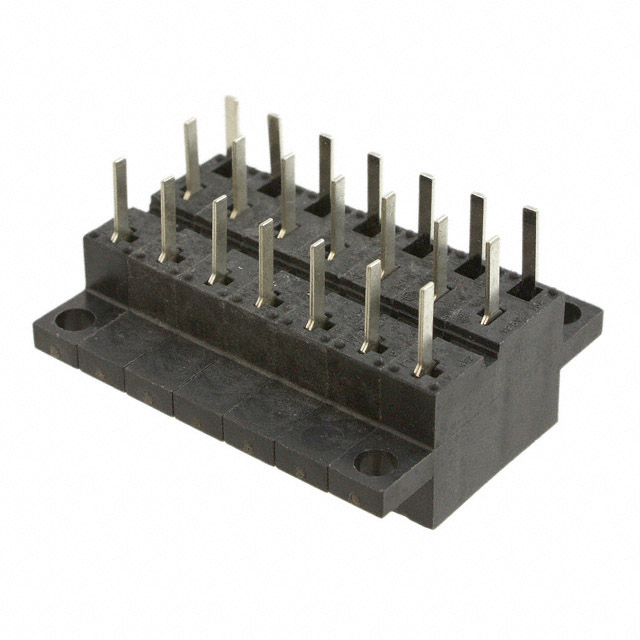

04820007ZXPF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 04820007ZXPF with confidence from Components-World.HK, 1 Year Warranty

Dowload 04820007ZXPF Details in PDF

Request a Quote

Part Number	04820007ZXPF
Manufacturer	Hamlin / Littelfuse
Description	FUSE HLDR BLADE 125V 15A PNL MNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 9583 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$4.032

Product parameter
Data sheet

Product parameter

Part Number	04820007ZXPF	Manufacturer	Hamlin / Littelfuse
Description	FUSE HLDR BLADE 125V 15A PNL MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9583 pcs	Data sheet	482 Series
Category	Circuit Protection	Voltage	125V
Termination Style	PC Pin	Series	482
Orientation	-	Number of Circuits	7
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Fuseholder Type	Holder	Fuse Type	Blade
Fuse Size	0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)	For Use With/Related Products	481 Alarm Fuse
Detailed Description	Fuse Holder 15A 125V 7 Circuit Blade Panel Mount	Current Rating	15A
Contact Material	Beryllium Copper	Contact Finish	Tin
