Home > Products > Circuit Protection > Fuseholders > 04820013ZXP

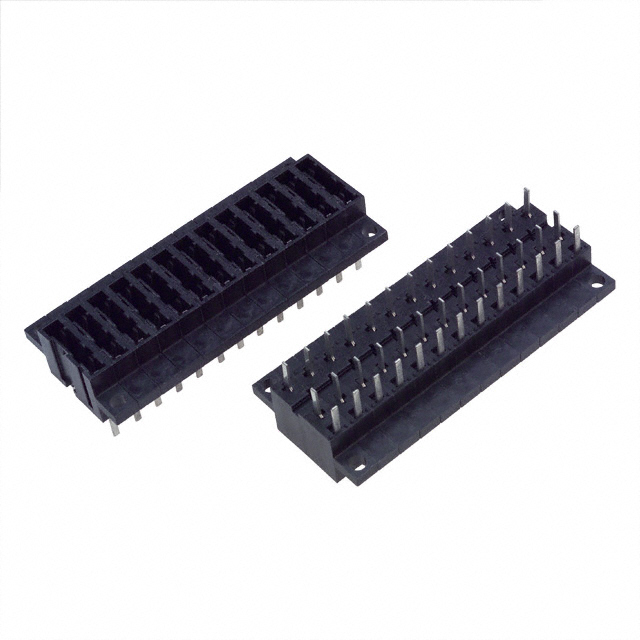

04820013ZXP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 04820013ZXP with confidence from Components-World.HK, 1 Year Warranty

Dowload 04820013ZXP Details in PDF

Request a Quote

Part Number	04820013ZXP
Manufacturer	Hamlin / Littelfuse
Description	FUSE HLDR BLADE 125V 15A PNL MNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4585 pcs
Reference Price (In US Dollars)	15 pcs
Reference Price (In US Dollars)	$7.437

Product parameter
Data sheet

Product parameter

Part Number	04820013ZXP	Manufacturer	Hamlin / Littelfuse
Description	FUSE HLDR BLADE 125V 15A PNL MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4585 pcs	Data sheet	482 Series
Category	Circuit Protection	Voltage	125V
Termination Style	PC Pin	Series	482
Other Names	F1432	Orientation	-
Number of Circuits	13	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuseholder Type	Holder
Fuse Type	Blade	Fuse Size	0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
For Use With/Related Products	481 Alarm Fuse	Detailed Description	Fuse Holder 15A 125V 13 Circuit Blade Panel Mount
Current Rating	15A	Contact Material	Beryllium Copper
Contact Finish	Tin
