Home > Products > Circuit Protection > Fuseholders > 04820008ZXB

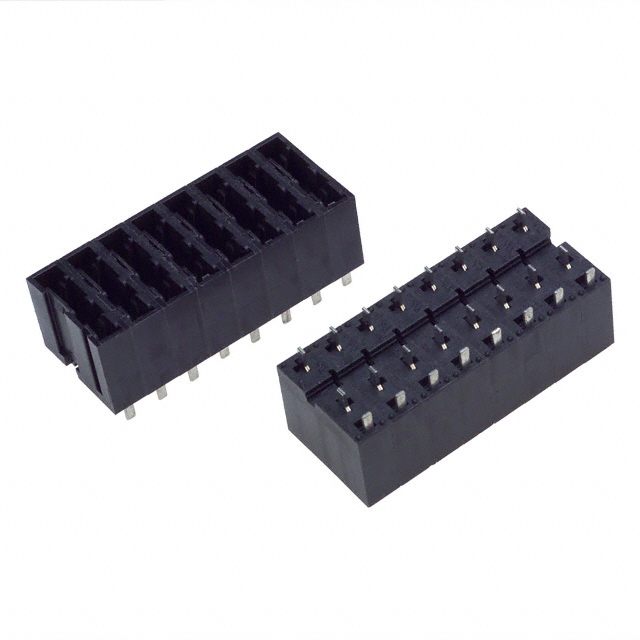

04820008ZXB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 04820008ZXB with confidence from Components-World.HK, 1 Year Warranty

Dowload 04820008ZXB Details in PDF

Request a Quote

Part Number	04820008ZXB
Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 13958 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
	$5.555	$5.128	$4.701	$4.06
	$3.419	$3.205	$2.885	$2.778

Product parameter
Data sheet

Product parameter

Part Number	04820008ZXB	Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13958 pcs	Data sheet	482 Series
Category	Circuit Protection	Voltage	125V
Termination Style	PC Pin	Series	482
Other Names	F1407	Orientation	Vertical
Number of Circuits	8	Mounting Type	PCB
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuseholder Type	Holder
Fuse Type	Blade	Fuse Size	0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
For Use With/Related Products	481 Alarm Fuse	Detailed Description	Fuse Holder 15A 125V 8 Circuit Blade PCB
Current Rating	15A	Contact Material	Beryllium Copper
Contact Finish	Tin
