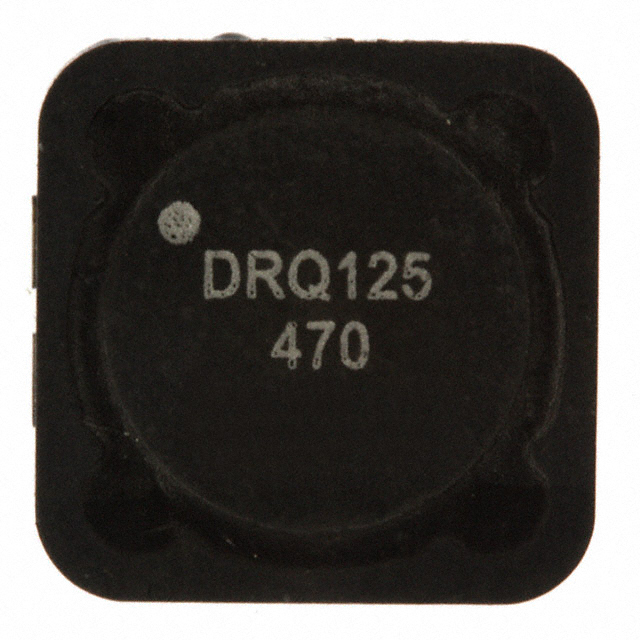

DRQ125-470-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ125-470-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ125-470-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ125-470-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 47.47UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.801 | $0.741 | $0.518 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ125-470-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 47.47UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59105 pcs | Data sheet | Inductor Selection SEPIC DesignsDRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Original-Reel® | Package / Case | Nonstandard |
| Other Names | 283-4600-6 513-1293-6 513-1293-6-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 189.9µH |
| Inductance - Connected In Parallel | 47.47µH | Height | 0.236" (6.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 189.9µH Inductance - Connected in Series 47.47µH Inductance - Connected in Parallel 74 mOhm DC Resistance (DCR) - Parallel 2.71A Nonstandard | DC Resistance (DCR) - Series | 297 mOhm |
| DC Resistance (DCR) - Parallel | 74 mOhm | Current Saturation - Series | 1.62A |
| Current Saturation - Parallel | 3.24A | Current Rating - Series | 1.35A |
| Current Rating - Parallel | 2.71A |
