DRQ125-1R5-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ125-1R5-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ125-1R5-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ125-1R5-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 1.478UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | ||||
|---|---|---|---|---|---|
| $0.355 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ125-1R5-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 1.478UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53750 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |

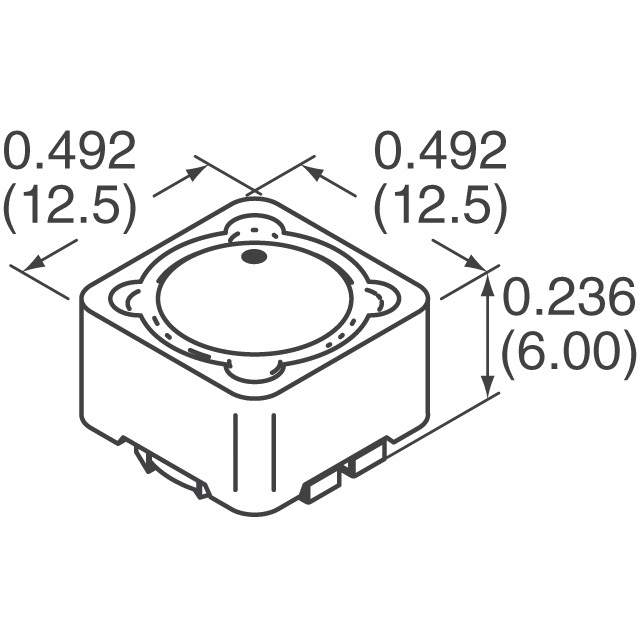

| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1283-2 DRQ125-1R5 DRQ125-1R5-ND DRQ125-1R5-R-ND DRQ125-1R5R |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 5.912µH |
| Inductance - Connected In Parallel | 1.478µH | Height | 0.236" (6.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 5.912µH Inductance - Connected in Series 1.478µH Inductance - Connected in Parallel 2.9 mOhm DC Resistance (DCR) - Parallel 13.8A Nonstandard | DC Resistance (DCR) - Series | 11.4 mOhm |
| DC Resistance (DCR) - Parallel | 2.9 mOhm | Current Saturation - Series | 9.15A |
| Current Saturation - Parallel | 18.3A | Current Rating - Series | 6.89A |
| Current Rating - Parallel | 13.8A |
