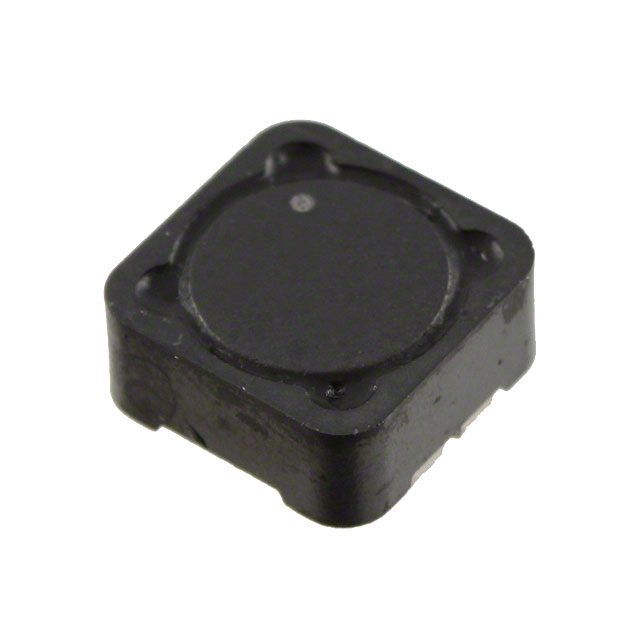

DRQ125-330-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ125-330-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ125-330-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ125-330-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 33.74UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 3000 pcs | 6000 pcs | |
|---|---|---|---|---|---|
| $0.355 | $0.324 | $0.314 | $0.303 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ125-330-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 33.74UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71220 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1292-2 DRQ125-330 DRQ125-330-ND DRQ125-330-R-ND DRQ125-330R DRQ125330R |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 135µH |
| Inductance - Connected In Parallel | 33.74µH | Height | 0.236" (6.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 135µH Inductance - Connected in Series 33.74µH Inductance - Connected in Parallel 50.5 mOhm DC Resistance (DCR) - Parallel 3.28A Nonstandard | DC Resistance (DCR) - Series | 203 mOhm |
| DC Resistance (DCR) - Parallel | 50.5 mOhm | Current Saturation - Series | 1.92A |
| Current Saturation - Parallel | 3.84A | Current Rating - Series | 1.64A |
| Current Rating - Parallel | 3.28A |
