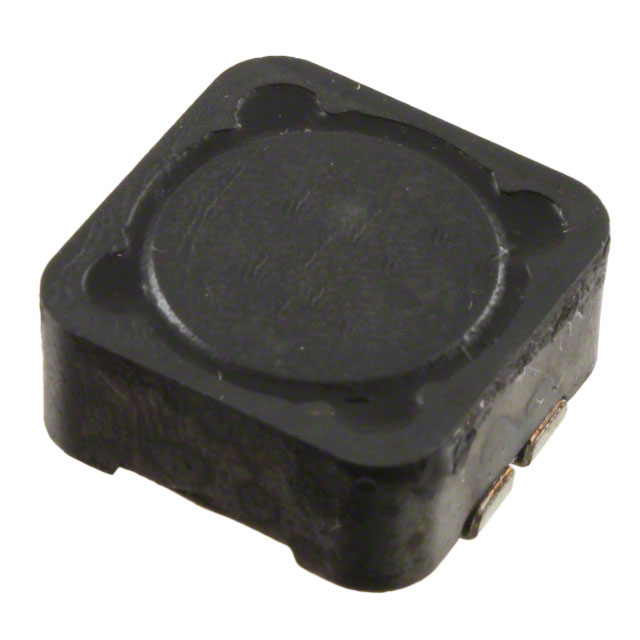

DRQ125-150-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ125-150-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ125-150-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ125-150-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 15.35UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 3000 pcs | 6000 pcs | |
|---|---|---|---|---|---|
| $0.355 | $0.324 | $0.313 | $0.303 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ125-150-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 15.35UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72097 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1290-2 DRQ125-150 DRQ125-150-ND DRQ125-150-R-ND DRQ125-150R DRQ125150R |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 61.4µH |
| Inductance - Connected In Parallel | 15.35µH | Height | 0.236" (6.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 61.4µH Inductance - Connected in Series 15.35µH Inductance - Connected in Parallel 29.8 mOhm DC Resistance (DCR) - Parallel 4.27A Nonstandard | DC Resistance (DCR) - Series | 120 mOhm |
| DC Resistance (DCR) - Parallel | 29.8 mOhm | Current Saturation - Series | 2.85A |
| Current Saturation - Parallel | 5.69A | Current Rating - Series | 2.13A |
| Current Rating - Parallel | 4.27A |
