DRQ125-681-R

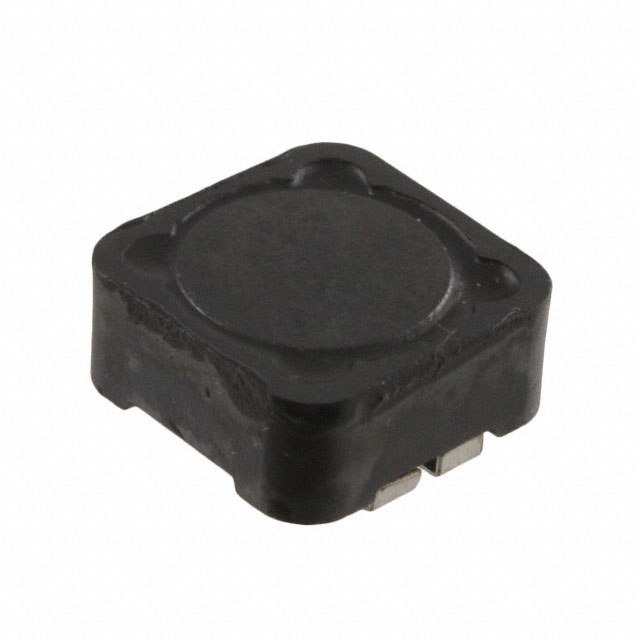

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ125-681-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ125-681-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ125-681-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 679.8UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 3000 pcs | 6000 pcs | |
|---|---|---|---|---|---|
| $0.357 | $0.325 | $0.315 | $0.304 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ125-681-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 679.8UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63026 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1301-2 DRQ125-681 DRQ125-681-ND DRQ125-681-R-ND DRQ125-681R DRQ125681R |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 2.719mH |
| Inductance - Connected In Parallel | 679.8µH | Height | 0.236" (6.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 2.719mH Inductance - Connected in Series 679.8µH Inductance - Connected in Parallel 1.1 Ohm DC Resistance (DCR) - Parallel 700mA Nonstandard | DC Resistance (DCR) - Series | 4.42 Ohm |
| DC Resistance (DCR) - Parallel | 1.1 Ohm | Current Saturation - Series | 425mA |
| Current Saturation - Parallel | 850mA | Current Rating - Series | 350mA |
| Current Rating - Parallel | 700mA |
