1513634-1

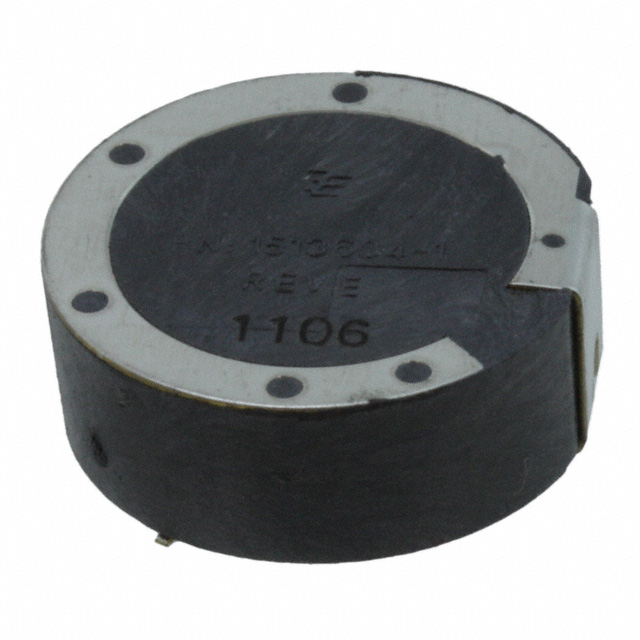

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513634-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513634-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513634-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 1.575GHZ PUCK SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.667 | $0.602 | $0.54 | $0.485 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513634-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 1.575GHZ PUCK SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64938 pcs | Data sheet | 1513634-1 Datasheet1513634 Drawing |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Cut Tape (CT) | Other Names | A107432CT |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.238" (6.05mm) | Gain | 0dBi |
| Frequency Range | 1.565GHz ~ 1.585GHz | Frequency Group | UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band) | 1.575GHz | Features | - |
| Detailed Description | 1.575GHz GPS Puck RF Antenna 1.565GHz ~ 1.585GHz 0dBi Solder Surface Mount | Applications | GPS |
| Antenna Type | Puck |
