1513711-1

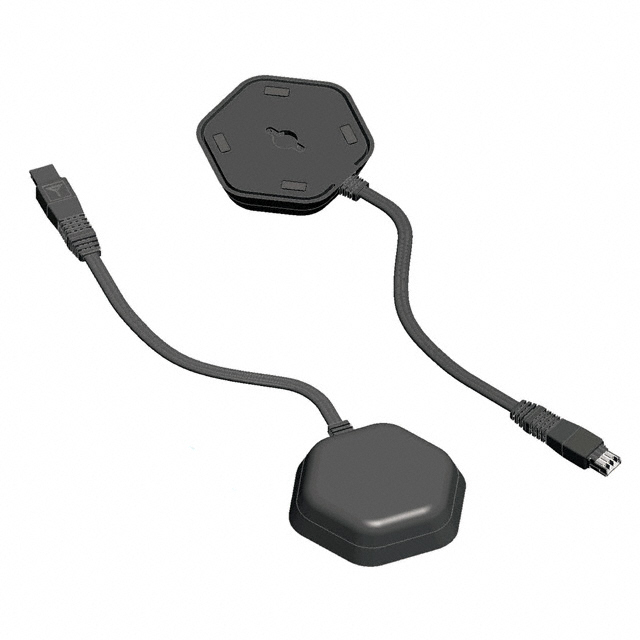

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513711-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513711-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513711-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.5GHZ/3.6GHZ MODULE CAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $7.36 | $6.808 | $6.256 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.814 | $5.336 | $5.078 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513711-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.5GHZ/3.6GHZ MODULE CAB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7055 pcs | Data sheet | QSL RF Connector System1513711 Drawing |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Cable (800mm) - QSL Type 3 | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Bulk | Other Names | A99130 |
| Number of Bands | 3 | Mounting Type | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.931" (23.65mm) | Gain | 0dBi, 3dBi, 2dBi |
| Frequency Range | 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 5.875GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 2.5GHz, 3.6GHz, 5.4GHz | Features | - |
| Detailed Description | 2.5GHz, 3.6GHz, 5.4GHz Bluetooth, WiMax™, WLAN, Zigbee™ Module RF Antenna 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 5.875GHz 0dBi, 3dBi, 2dBi Cable (800mm) - QSL Type 3 | Applications | Bluetooth, WiMax™, WLAN, Zigbee™ |
| Antenna Type | Module |
