1513504-1

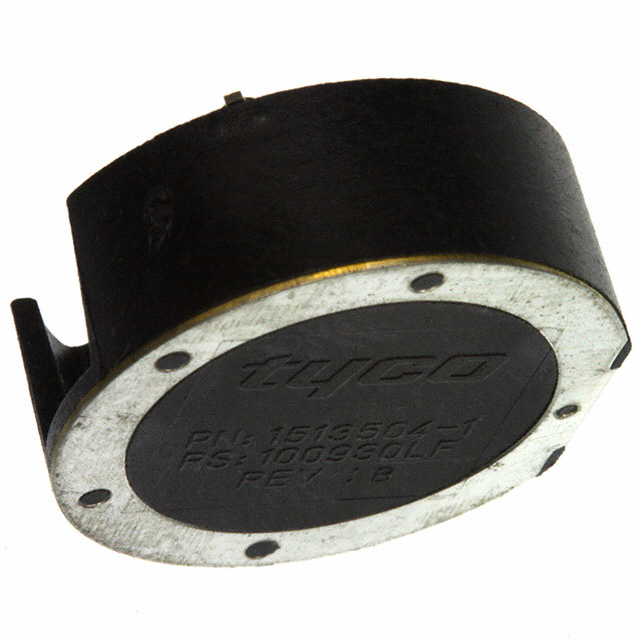

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513504-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513504-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513504-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.4GHZ PUCK SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 450 pcs | 900 pcs | 1350 pcs | 2250 pcs | 11250 pcs |
|---|---|---|---|---|---|
| $0.444 | $0.351 | $0.322 | $0.30 | $0.278 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513504-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.4GHZ PUCK SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85480 pcs | Data sheet | 1513504, 1513151, 1513167 Drawing1513504-1 Datasheet |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Tape & Reel (TR) | Other Names | 15135041 A99515TR |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.238" (6.05mm) | Gain | 2dBi |
| Frequency Range | 2.4GHz ~ 2.483.5GHz | Frequency Group | UHF (2 GHz ~ 3 GHz) |
| Frequency (Center/Band) | 2.4GHz | Features | - |
| Detailed Description | 2.4GHz Bluetooth, WLAN, Zigbee™ Puck RF Antenna 2.4GHz ~ 2.483.5GHz 2dBi Solder Surface Mount | Applications | Bluetooth, WLAN, Zigbee™ |
| Antenna Type | Puck |
