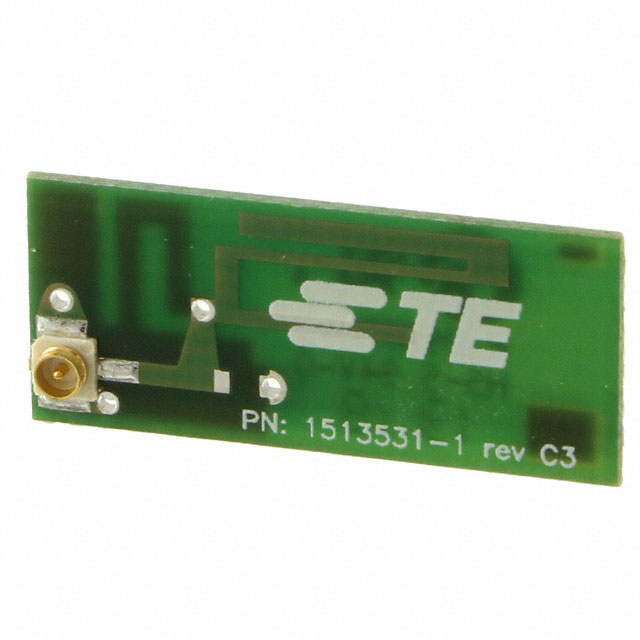

1513531-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513531-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513531-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513531-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.4GHZ/5GHZ PCB TRACE SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5152 pcs | ||||
|---|---|---|---|---|---|
| $1.405 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513531-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5GHZ PCB TRACE SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26660 pcs | Data sheet | 1513531 Drawing |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Bulk |
| Other Names | A117259 | Number of Bands | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.031" (0.80mm) |
| Gain | 2dB | Frequency Range | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.9GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 5GHz |
| Features | - | Detailed Description | 2.4GHz, 5GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.9GHz 2dB Solder Surface Mount |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Antenna Type | PCB Trace |
