1274568-3

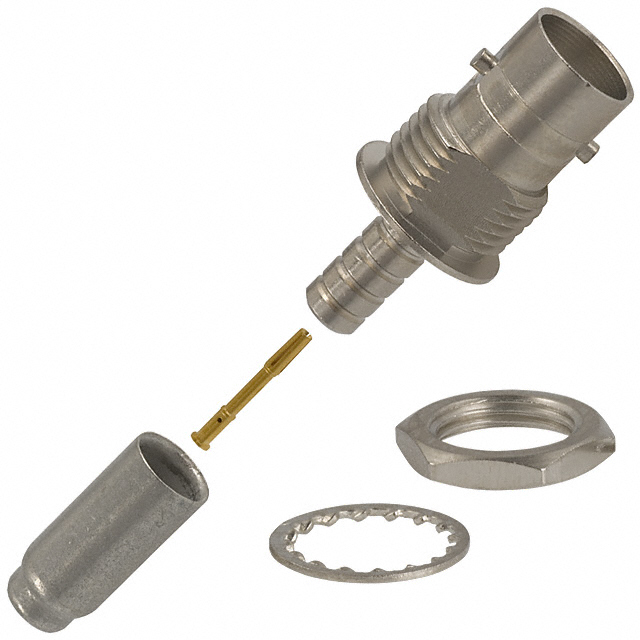

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1274568-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1274568-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1274568-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MINI BNC JCK STR 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.783 | $4.347 | $4.238 | $3.912 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.695 | $3.369 | $3.152 | $2.891 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1274568-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MINI BNC JCK STR 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11171 pcs | Data sheet | 1274568 |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Shield Termination | Crimp | Series | - |
| Packaging | Tray | Other Names | 12745683 A30538 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 2GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Mini Connector Jack, Female Socket 75 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | BNC, Mini | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-179 |
| Body Material | Brass | Body Finish | Nickel |
