1274595-1

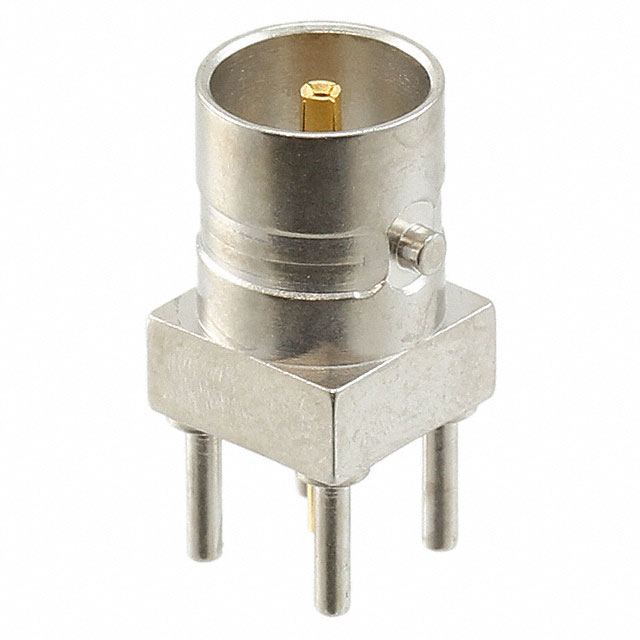

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1274595-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1274595-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1274595-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MINI BNC JACK STR 75OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.952 | $2.823 | $2.567 | $2.438 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.374 | $2.117 | $1.989 | $1.758 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1274595-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MINI BNC JACK STR 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20137 pcs | Data sheet | 1274595 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | A108631 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 2GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Mini Connector Jack, Female Socket 75 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC, Mini | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Stainless Steel | Body Finish | Nickel |
