1274544-1

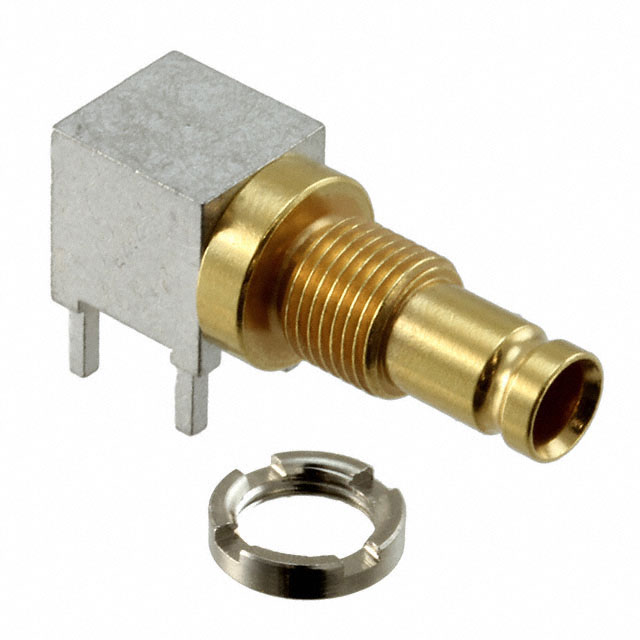

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1274544-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1274544-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1274544-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN 1.0/2.3 JACK R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6400 pcs | ||||
|---|---|---|---|---|---|
| $1.116 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1274544-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN 1.0/2.3 JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28643 pcs | Data sheet | 1274544 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | A108630 | Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 29 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 10GHz | Features | - |
| Fastening Type | Push-Pull | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | 1.0/2.3 Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | 1.0/2.3 |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
