1274663-2

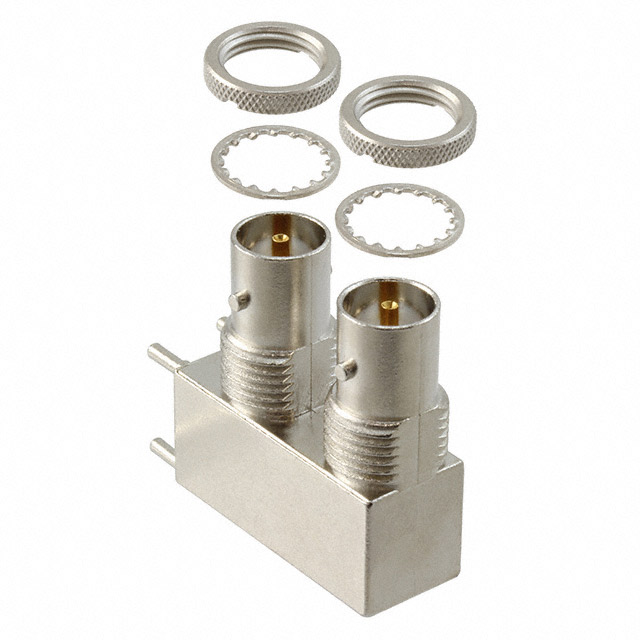

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1274663-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1274663-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1274663-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MINI BNC JACK R/A 75OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2880 pcs | ||||
|---|---|---|---|---|---|
| $4.763 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1274663-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MINI BNC JACK R/A 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7101 pcs | Data sheet | 1274663 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | A108632 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 5 pcs - 1 Connector, 2 Lockwashers, 2 Nuts | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 2GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Mini Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC, Mini | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Zinc | Body Finish | Nickel |
