744282100

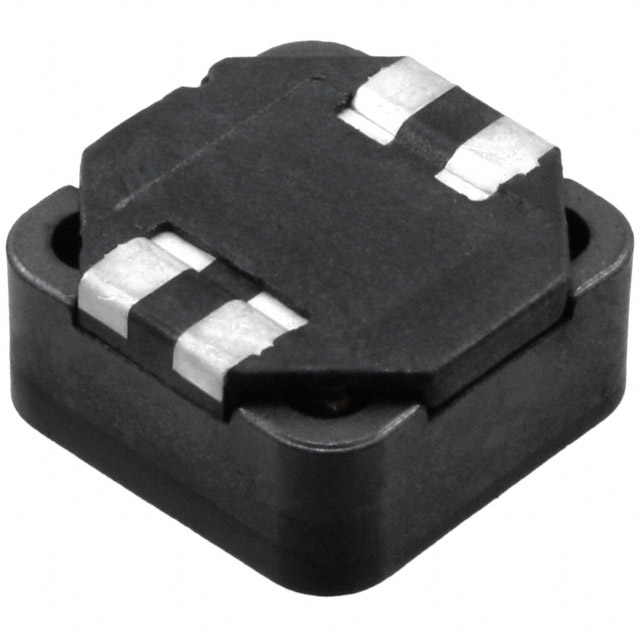

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 744282100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 744282100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 744282100 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CMC 10UH 2.25A 2LN 9 KOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.815 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 744282100 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CMC 10UH 2.25A 2LN 9 KOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36559 pcs | Data sheet | 744282100 |
| Category | Filters | Voltage Rating - DC | 80V |
| Voltage Rating - AC | - | Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Series | WE-SCC | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 732-2966-2 | Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 10µH @ 100kHz |
| Impedance @ Frequency | 9 kOhms @ 20MHz | Height (Max) | 0.256" (6.50mm) |
| Filter Type | Power, Signal Line | Features | - |
| Detailed Description | 10µH @ 100kHz 2 Line Common Mode Choke Surface Mount 9 kOhms @ 20MHz 2.25A DCR 50 mOhm | DC Resistance (DCR) (Max) | 50 mOhm |
| Current Rating (Max) | 2.25A | Approvals | - |
