744273801

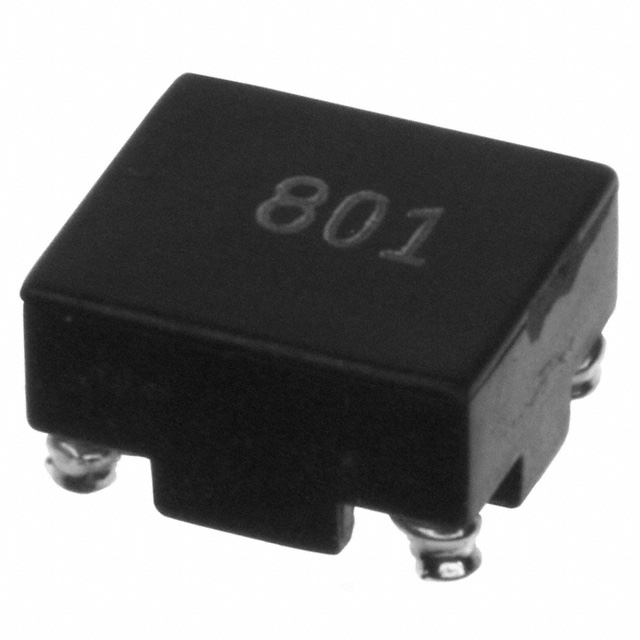

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 744273801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 744273801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 744273801 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CMC 9UH 3.5A 2LN 800 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $1.235 | $1.145 | $1.034 | $0.997 | $0.923 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 744273801 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CMC 9UH 3.5A 2LN 800 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37627 pcs | Data sheet | 744273801 |
| Category | Filters | Voltage Rating - DC | 80V |
| Voltage Rating - AC | - | Size / Dimension | 0.374" L x 0.327" W (9.50mm x 8.30mm) |
| Series | WE-SL5 | Ratings | - |
| Packaging | Original-Reel® | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 732-2215-6 | Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 9µH @ 100kHz |
| Impedance @ Frequency | 800 Ohms @ 120MHz | Height (Max) | 0.209" (5.30mm) |
| Filter Type | Power, Signal Line | Features | - |
| Detailed Description | 9µH @ 100kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 120MHz 3.5A DCR 11 mOhm | DC Resistance (DCR) (Max) | 11 mOhm |
| Current Rating (Max) | 3.5A | Approvals | - |
