1761542001

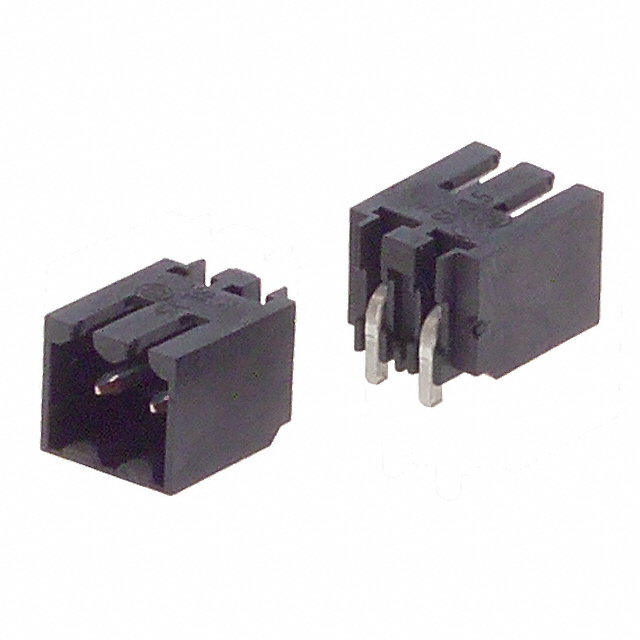

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1761542001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1761542001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1761542001 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 2POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.538 | $0.377 | $0.351 | $0.319 | $0.318 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.268 | $0.254 | $0.226 | $0.183 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1761542001 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 112956 pcs | Data sheet | 1761542001 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-1754 SL-SMT3.5/2/90G |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.293" (7.44mm) |
| Ingress Protection | IP10 | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Current - UL | 10A |
| Current - IEC | 15A | Contact Tail Length | 0.059" (1.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
