176153-3

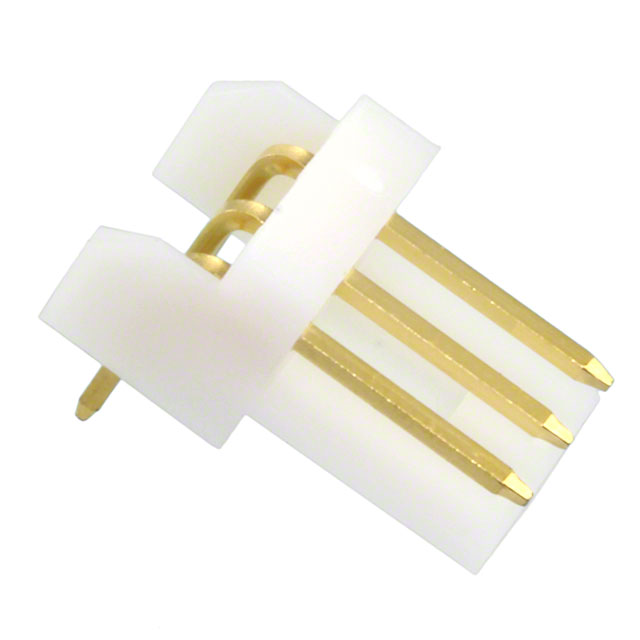

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 176153-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 176153-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 176153-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | EIS POST HDR ASSY H 3P GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.548 | $0.496 | $0.425 | $0.354 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.304 | $0.269 | $0.263 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 176153-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EIS POST HDR ASSY H 3P GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78482 pcs | Data sheet | 176153 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | EI |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116543 | Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.264" (6.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | - |
| Connector Type | Header | Applications | General Purpose |
