1761500-1

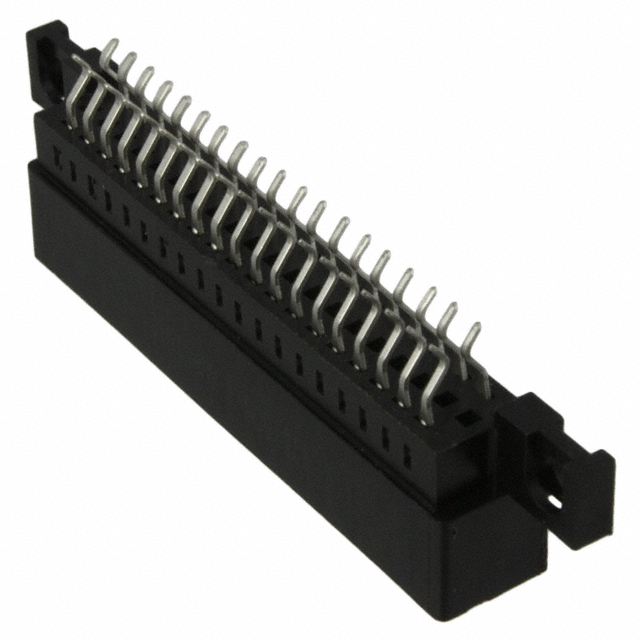

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1761500-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1761500-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1761500-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 26POS 0.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $2.336 | $2.238 | $2.043 | $1.946 | $1.849 | |
| 270 pcs | 510 pcs | 1020 pcs | 2520 pcs | ||
| $1.654 | $1.557 | $1.362 | $1.294 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1761500-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 26POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27696 pcs | Data sheet | 1761500Card Edge Products Catalog |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Standard Edge II | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 17615001 | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 1; 1; 1; 10 |
| Number of Positions | 26 (20 + 6 Power) | Mounting Type | Board Edge, Straddle Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | Flush Mount, Side Opening, Unthreaded, 0.145" (3.68mm) Dia |
| Features | Card Extender | Contact Type | - |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
