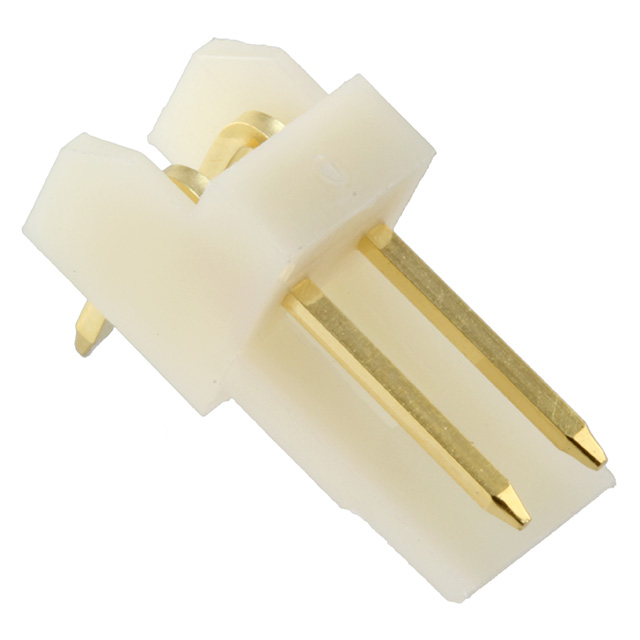

176153-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 176153-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 176153-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 176153-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | EIS POST HDR ASSY H 2P GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20000 pcs | ||||
|---|---|---|---|---|---|
| $0.191 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 176153-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EIS POST HDR ASSY H 2P GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113380 pcs | Data sheet | 176153 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | EI |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116542 | Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.264" (6.70mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.142" (3.60mm) |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | - | Connector Type | Header |
| Applications | General Purpose |
