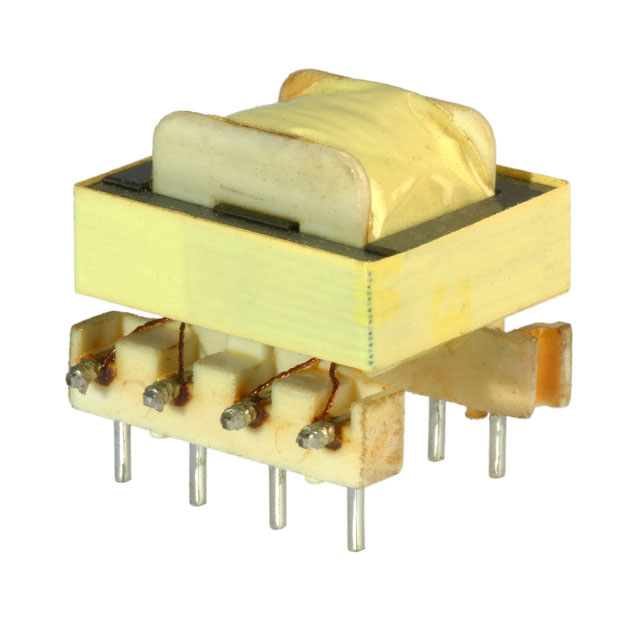

TY-250P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-250P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY-250P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY-250P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | PC MOUNT AUDIO TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.991 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY-250P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | PC MOUNT AUDIO TRANSFORMER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16595 pcs | Data sheet | TY-250P Datasheet |
| Category | Transformers | Voltage - Isolation | 1500VAC |
| Turns Ratio - Primary:Secondary | 1:1, 2:1 | Transformer Type | Impedance Matching |
| Termination Style | PC Pin | Size / Dimension | 0.800" L x 0.770" W (20.32mm x 19.56mm) |
| Series | TY | Return Loss | - |
| Power Level | - | Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 29 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 2.8dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 1kCT | Impedance - Primary (Ohms) | 1kCT |
| Height - Seated (Max) | 0.700" (17.78mm) | Frequency Response | ±1dB |
| Frequency Range | 20Hz ~ 20kHz | DC Resistance (DCR) - Secondary | 172 Ohm |
| DC Resistance (DCR) - Primary | 172 Ohm | Approvals | - |
