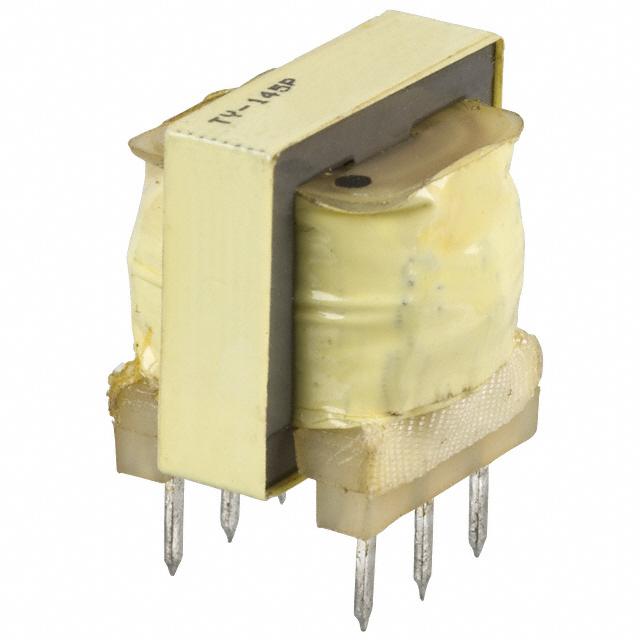

TY-145P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-145P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY-145P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY-145P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 600 AUDIO CTAP/600 CTAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.035 | $1.547 | $1.506 | $1.384 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.303 | $1.262 | $1.221 | $1.181 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY-145P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 600 AUDIO CTAP/600 CTAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31805 pcs | Data sheet | TY-145P Datasheet |
| Category | Transformers | Weight | 0.032 lb (14.51g) |
| Voltage - Isolation | 1500V | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) | Series | TY |
| Return Loss | 26dB | Power Level | 100mW |
| Packaging | Bulk | Other Names | 10612 237-1121 TY145P |
| Operating Temperature | 0°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 52 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1.5dB |
| Impedance - Secondary (Ohms) | 600CT | Impedance - Primary (Ohms) | 600CT |
| Height - Seated (Max) | 0.740" (18.80mm) | Frequency Response | ±2dB |
| Frequency Range | 200Hz ~ 15kHz | DC Resistance (DCR) - Secondary | 58 Ohm |
| DC Resistance (DCR) - Primary | 44 Ohm | Approvals | - |
