TY-146P

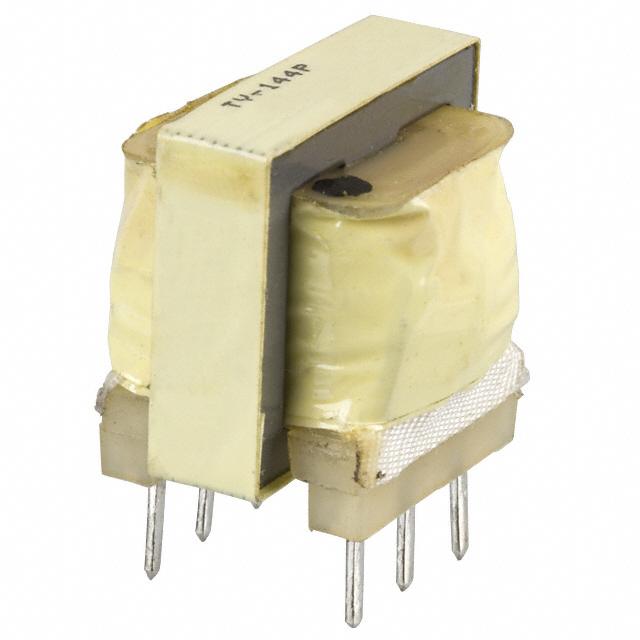

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-146P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY-146P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY-146P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 600 AUDIO CT 150/600CT 15 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.979 | $2.316 | $2.253 | $1.94 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.853 | $1.815 | $1.784 | $1.753 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY-146P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 600 AUDIO CT 150/600CT 15 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17023 pcs | Data sheet | TY-146P Datasheet |
| Category | Transformers | Weight | 0.188 lb (85.28g) |
| Voltage - Isolation | 1500V | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 1.375" L x 1.187" W (34.93mm x 30.15mm) | Series | TY |
| Return Loss | 26dB | Power Level | 1W |
| Packaging | Bulk | Other Names | 10613 237-1122 TY146P |
| Operating Temperature | 0°C ~ 105°C | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB | Impedance - Secondary (Ohms) | 600, 150/150 |
| Impedance - Primary (Ohms) | 600, 150/150 | Height - Seated (Max) | 1.187" (30.15mm) |
| Frequency Response | ±2dB | Frequency Range | 200Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 14.5 Ohm, 22 Ohm | DC Resistance (DCR) - Primary | 17 Ohm, 19 Ohm |
| Approvals | - |
