TY-141P

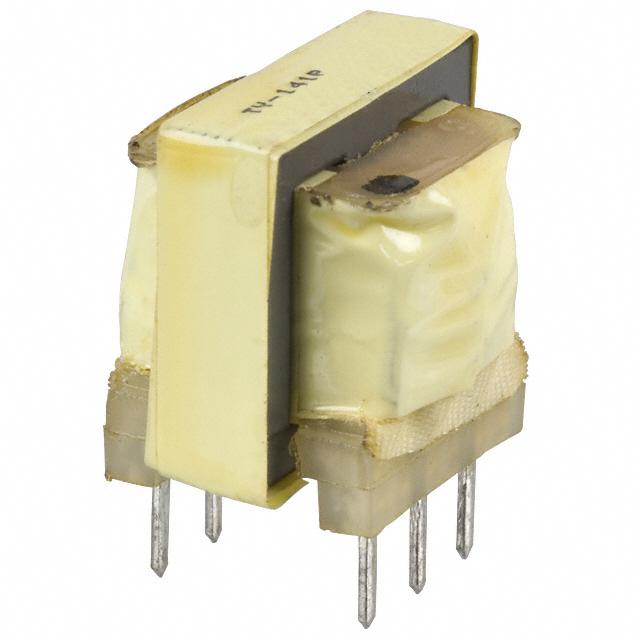

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY-141P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY-141P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY-141P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 10K AUDIO CTAP/10K CTAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.041 | $1.551 | $1.51 | $1.388 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.306 | $1.266 | $1.225 | $1.184 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY-141P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 10K AUDIO CTAP/10K CTAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26431 pcs | Data sheet | TY-141P Datasheet |
| Category | Transformers | Weight | 0.032 lb (14.51g) |
| Voltage - Isolation | 1500V | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) | Series | TY |
| Return Loss | 26dB | Power Level | 100mW |
| Packaging | Bulk | Other Names | 237-1118 TY141P |
| Operating Temperature | 0°C ~ 105°C | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 47 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB | Impedance - Secondary (Ohms) | 10kCT |
| Impedance - Primary (Ohms) | 10kCT | Height - Seated (Max) | 0.740" (18.80mm) |
| Frequency Response | ±2dB | Frequency Range | 200Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 1.07 kOhm | DC Resistance (DCR) - Primary | 820 Ohm |
| Approvals | - |
