Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > PD42-3-1370-TMCL

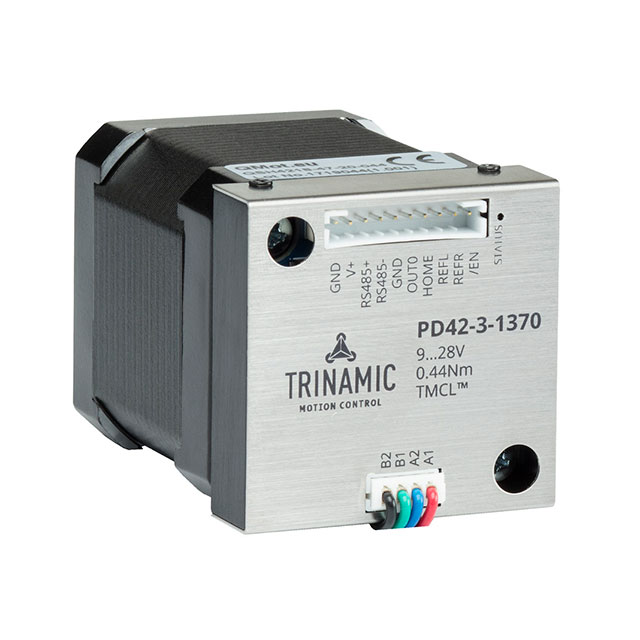

PD42-3-1370-TMCL

PD42-3-1370-TMCL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD42-3-1370-TMCL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PD42-3-1370-TMCL
Manufacturer TRINAMIC Motion Control GmbH
Description PANDRIVE NEMA17, 24V, 0.44NM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 527 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs
$86.64$72.261

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$86.64

Product parameter

Part Number PD42-3-1370-TMCL Manufacturer TRINAMIC Motion Control GmbH
Description PANDRIVE NEMA17, 24V, 0.44NM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 527 pcs Data sheet PD42-x-1370 Hardware ManualPD42-1370-TMCL Firmware Manual
Category Motors, Solenoids, Driver Boards/Modules Weight -
Voltage - Rated 2.4VDC Type Hybrid
Torque - Holding (oz-in / mNm) 62.31 / 440 Termination Style Connector
Steps per Revolution 200 Step Angle 1.8°
Size / Dimension Square - 1.665" x 1.665" (42.30mm x 42.30mm) Series PANdrive™
Rotor Inertia 68gcm² Other Names 1460-1315
30-0326
Operating Temperature -20°C ~ 50°C NEMA Frame Size 17
Mounting Hole Spacing 1.220" (31.00mm) Moisture Sensitivity Level (MSL) Not Applicable
Manufacturer Standard Lead Time 8 Weeks Length - Shaft and Bearing 0.945" (24.00mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Features Integrated Controller, Flatted Shaft
Diameter - Shaft 0.197" (5.00mm) Detailed Description Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 2A 2.4VDC
Current Rating 2A Coil Type Bipolar
Coil Resistance 1.4 Ohms Approvals -
Accuracy ±5%
