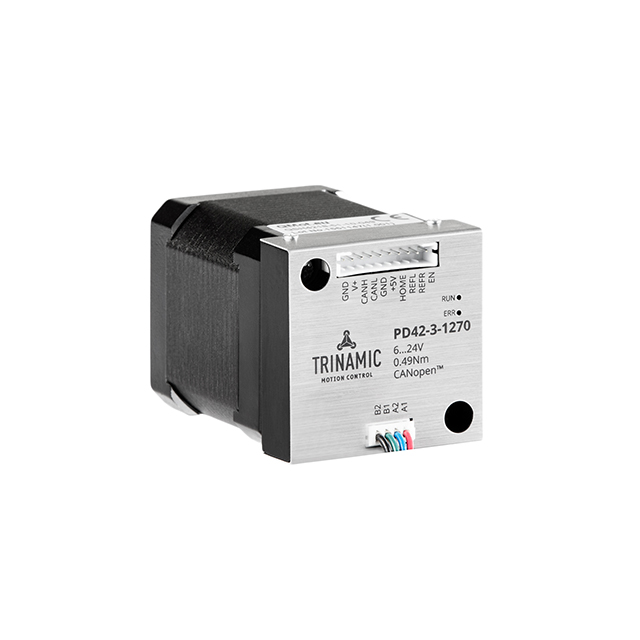

PD42-3-1270-CANOPEN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD42-3-1270-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD42-3-1270-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD42-3-1270-CANOPEN |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | PANDRIVE NEMA17, 24V, 69 OZ IN/ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $54.381 | $52.439 | $51.662 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD42-3-1270-CANOPEN | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | PANDRIVE NEMA17, 24V, 69 OZ IN/ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 765 pcs | Data sheet | TMCM-1270-CANOPEN Firmware ManualTMCM-1270-TMCL Firmware ManualPD42-1270 Hardware Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.772 lb (350.17g) |
| Voltage - Rated | 24VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 62.3 / 440 | Termination Style | Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | Series | PANdrive™ |
| Rotor Inertia | 68gcm² | Other Names | 1460-1209 30-0302 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (31.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Round Shaft |
| Diameter - Shaft | - | Detailed Description | Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 1A 24VDC |
| Current Rating | 1A | Coil Type | Bipolar |
| Coil Resistance | 1.4 Ohms | Approvals | - |
| Accuracy | ±5% |
