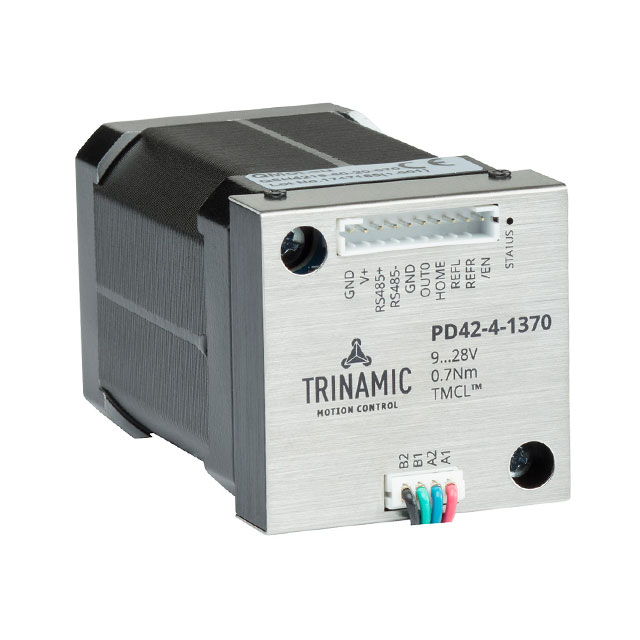

PD42-4-1370-TMCL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD42-4-1370-TMCL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD42-4-1370-TMCL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD42-4-1370-TMCL |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | PANDRIVE NEMA17, 24V, 0.7NM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $88.417 | $73.281 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD42-4-1370-TMCL | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | PANDRIVE NEMA17, 24V, 0.7NM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 484 pcs | Data sheet | PD42-x-1370 Hardware ManualPD42-1370-TMCL Firmware Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | - |
| Voltage - Rated | 4.4VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 99.1 / 700 | Termination Style | Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | Series | PANdrive™ |
| Rotor Inertia | 102gcm² | Other Names | 1460-1316 30-0327 |
| Operating Temperature | -20°C ~ 50°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (31.00mm) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 2A 4.4VDC |
| Current Rating | 2A | Coil Type | Bipolar |
| Coil Resistance | 2.3 Ohms | Approvals | - |
| Accuracy | ±5% |
