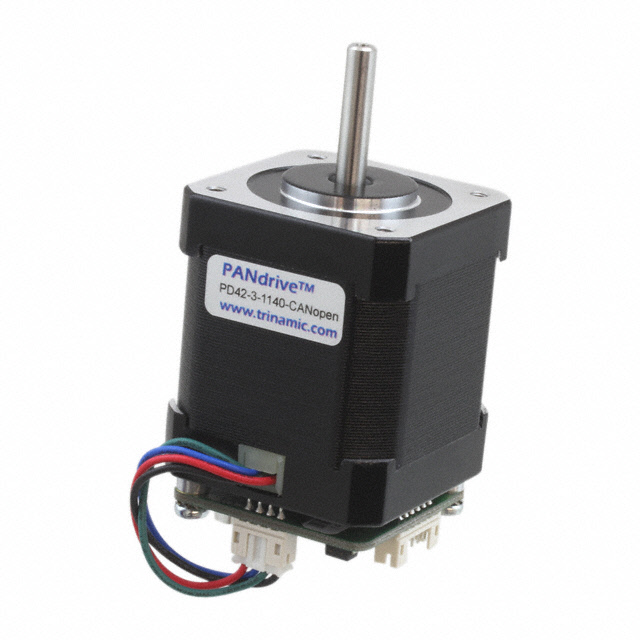

PD42-3-1140-CANOPEN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD42-3-1140-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD42-3-1140-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD42-3-1140-CANOPEN |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $87.051 | $84.528 | $82.002 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD42-3-1140-CANOPEN | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 401 pcs | Data sheet | PD-1140 Hardware ManualPD-1140 Short Spec |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.486 lb (220.45g) |
| Voltage - Rated | 24VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 62.3 / 440 | Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | Series | PANdrive™ |
| Rotor Inertia | - | Other Names | 1460-1105 30-0233 30-0265 |
| Operating Temperature | - | NEMA Frame Size | 17 |
| Mounting Hole Spacing | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor 200 Step 2A 24VDC |
| Current Rating | 2A | Coil Type | Bipolar |
| Approvals | - | Accuracy | - |
