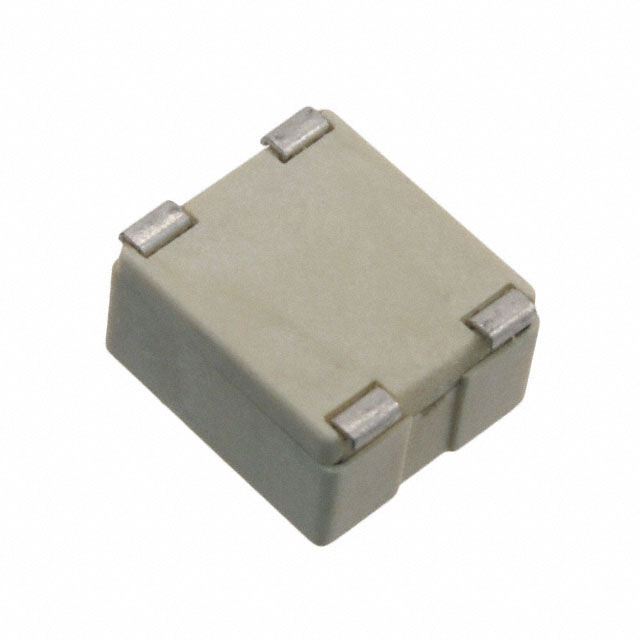

CPFC85NP-WH04
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPFC85NP-WH04 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPFC85NP-WH04 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPFC85NP-WH04 |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | CMC 5.65A 2LN 300 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.779 | $0.718 | $0.503 | $0.407 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPFC85NP-WH04 | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | CMC 5.65A 2LN 300 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74465 pcs | Data sheet | CPFC85 Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.366" L x 0.323" W (9.30mm x 8.20mm) |
| Series | CPFC | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 308-1563-1 CPFC85NPWH04 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance @ Frequency | 300 Ohms @ 100MHz |
| Height (Max) | 0.217" (5.50mm) | Filter Type | Signal Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Surface Mount 300 Ohms @ 100MHz 5.65A DCR 20 mOhm |
| DC Resistance (DCR) (Max) | 20 mOhm | Current Rating (Max) | 5.65A |
| Approvals | - |
