CPFC74NP-PS02H2A20

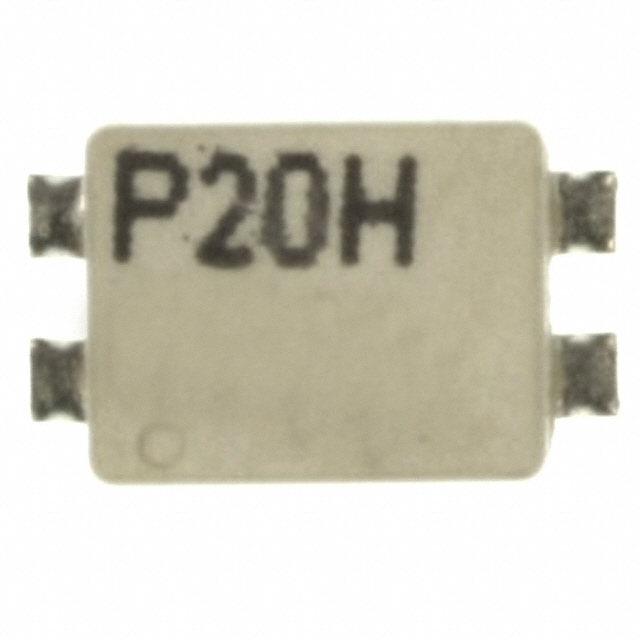

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPFC74NP-PS02H2A20 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPFC74NP-PS02H2A20 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPFC74NP-PS02H2A20 |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | CMC 2A 2LN 200 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.501 | $0.465 | $0.336 | $0.257 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPFC74NP-PS02H2A20 | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | CMC 2A 2LN 200 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92457 pcs | Data sheet | CPFC74 Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.374" L x 0.224" W (9.50mm x 5.70mm) |
| Series | CPFC | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Vertical, 4 Gull Wing |
| Other Names | 308-1559-1 CPFC74NPPS02H2A20 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance @ Frequency | 200 Ohms @ 20MHz |
| Height (Max) | 0.200" (5.08mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Surface Mount 200 Ohms @ 20MHz 2A DCR 120 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 120 mOhm (Typ) | Current Rating (Max) | 2A |
| Approvals | - |
