CPFC85-1M15NP

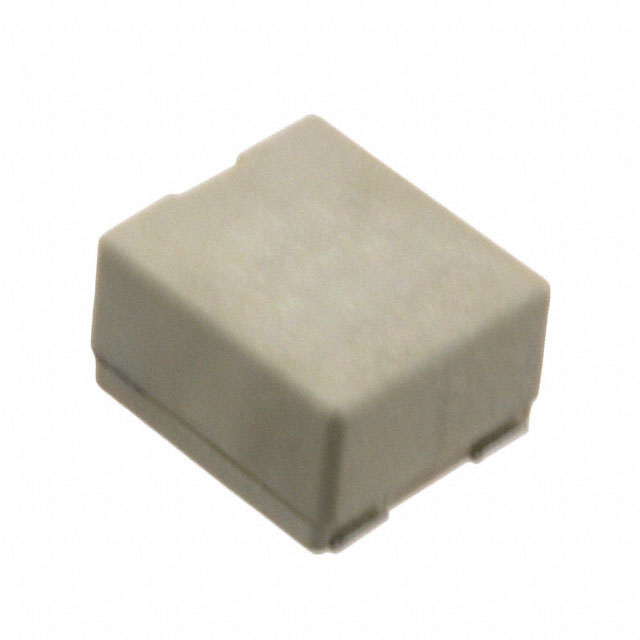

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPFC85-1M15NP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPFC85-1M15NP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPFC85-1M15NP |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | COMMON MODE CHOKE 4.7MH 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.101 | $1.008 | $0.66 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPFC85-1M15NP | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 4.7MH 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49531 pcs | Data sheet | CPFC85 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.366" L x 0.323" W (9.30mm x 8.20mm) |
| Series | CPFC | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 308-1565-1 | Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 4.7mH @ 100kHz | Height (Max) | 0.217" (5.50mm) |
| Filter Type | - | Features | - |
| Detailed Description | 4.7mH @ 100kHz 2 Line Common Mode Choke Surface Mount DCR 2 Ohm | DC Resistance (DCR) (Max) | 2 Ohm |
| Current Rating (Max) | - | Approvals | - |
