SMS3PH-4D28

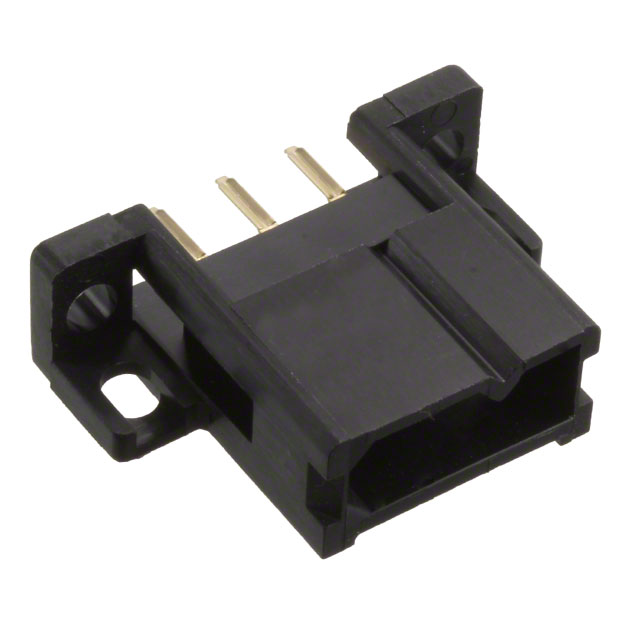

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS3PH-4D28 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS3PH-4D28 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS3PH-4D28 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | HSG BRD MNT SKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.239 | $1.187 | $0.989 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.841 | $0.717 | $0.643 | |||
- Product parameter
Product parameter
| Part Number | SMS3PH-4D28 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | HSG BRD MNT SKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59756 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | SOU2171 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.901" (22.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 3 position 0.200" (5.08mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
