SMS3PH3TR29

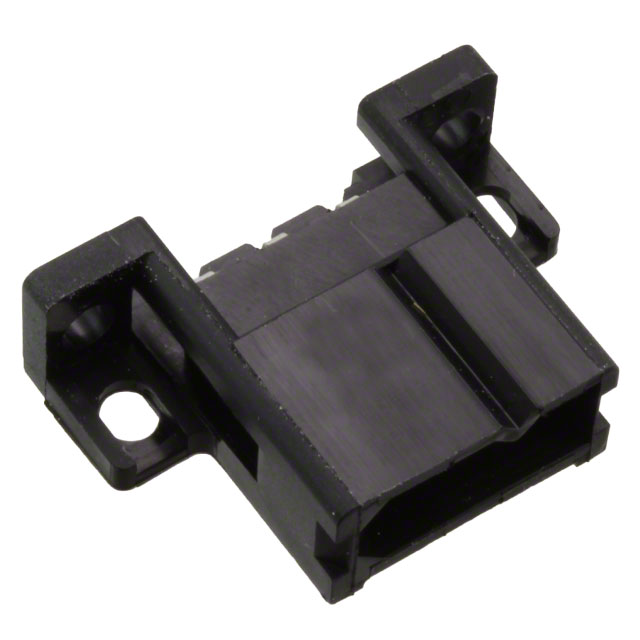

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS3PH3TR29 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS3PH3TR29 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS3PH3TR29 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | SMS PIN HEADER BOARDMOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.95 | $0.863 | $0.74 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.616 | $0.528 | $0.469 | |||
- Product parameter
Product parameter
| Part Number | SMS3PH3TR29 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS PIN HEADER BOARDMOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70583 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | SMS3PH-3TR29 SMS3PH3TR29-ND SOU2170 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.370" (9.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.200" (5.08mm) | Current Rating | 5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.165" (4.19mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 47.2µin (1.20µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
