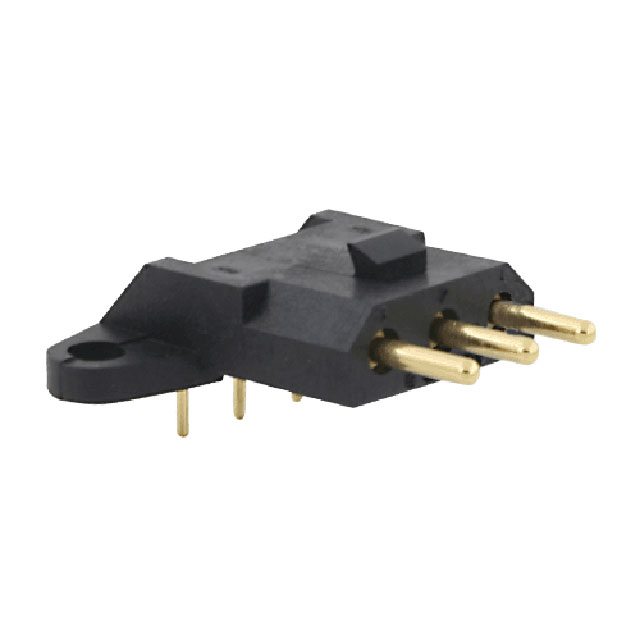

SMS3GE6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS3GE6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS3GE6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS3GE6 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | SMS RIGHT ANGLE BRDMNT MLE CONS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.22 | $2.811 | $2.06 | $1.735 | $1.518 | |
- Product parameter
Product parameter
| Part Number | SMS3GE6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS RIGHT ANGLE BRDMNT MLE CONS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21888 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | SMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.268" (6.80mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.200" (5.08mm) | Current Rating | 7.5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.177" (4.50mm) |
| Contact Length - Mating | 0.280" (7.11mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
