SMS3GE4

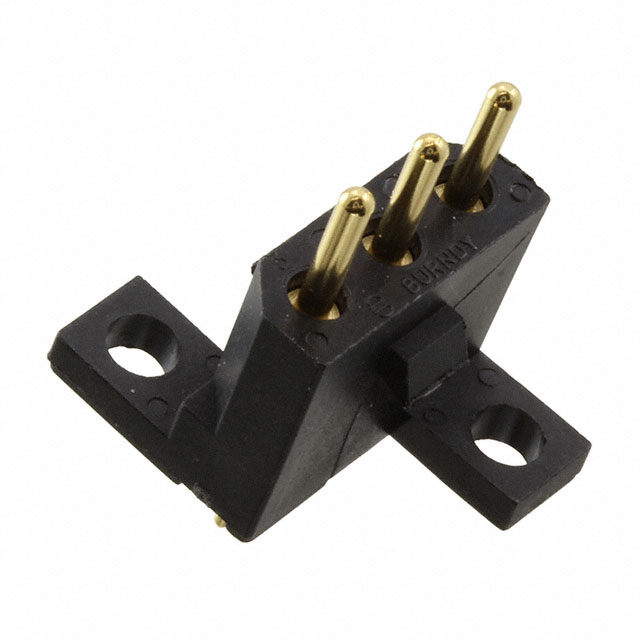

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS3GE4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS3GE4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS3GE4 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN RCPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.862 | $1.787 | $1.638 | $1.563 | $1.489 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.303 | $1.266 | $1.08 | $1.005 | ||
- Product parameter
Product parameter
| Part Number | SMS3GE4 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36200 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | SMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.939" (23.85mm) |
| Other Names | SOU1996 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.526" (13.35mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 3 position 0.200" (5.08mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.280" (7.11mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
