SD125SB45B.T

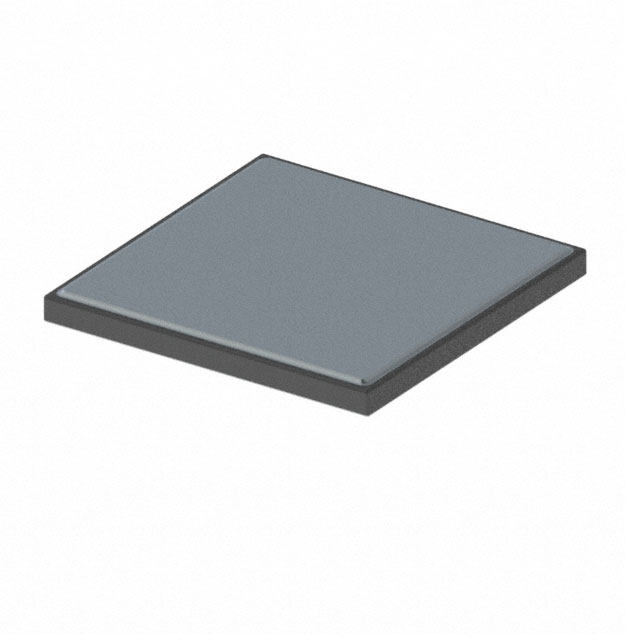

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD125SB45B.T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD125SB45B.T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD125SB45B.T |
|---|---|
| Manufacturer | Sensitron Semiconductor / SMC Diode Solutions |
| Description | DIODE SCHOTTKY 45V 15A DIE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | 40 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.463 | $0.418 | $0.366 | |||
| 500 pcs | 1000 pcs | 2000 pcs | |||
| $0.284 | $0.224 | $0.209 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD125SB45B.T | Manufacturer | Sensitron Semiconductor / SMC Diode Solutions |
|---|---|---|---|
| Description | DIODE SCHOTTKY 45V 15A DIE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 115117 pcs | Data sheet | SD125SB45B |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 640mV @ 15A |
| Voltage - DC Reverse (Vr) (Max) | 45V | Supplier Device Package | Die |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Packaging | Tray | Package / Case | Die |
| Other Names | 1655-1764 | Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 45V 15A Surface Mount Die |
| Current - Reverse Leakage @ Vr | 400µA @ 45V | Current - Average Rectified (Io) | 15A |
| Capacitance @ Vr, F | 800pF @ 5V, 1MHz |
