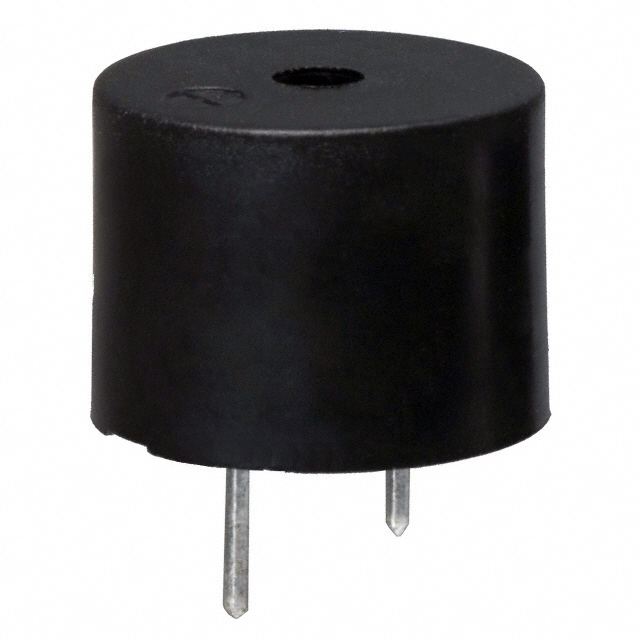

SD1209T3-A1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD1209T3-A1 with confidence from Components-World.HK, 1 Year Warranty
Dowload SD1209T3-A1 Details in PDFSee Product Specifications for product details.
Buy SD1209T3-A1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD1209T3-A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 1-4V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.585 | $0.464 | $0.424 | $0.395 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $0.37 | $0.337 | $0.313 | $0.294 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD1209T3-A1 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 1-4V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65030 pcs | Data sheet | SD1209T3-A1SD Series Datasheet |
| Category | Audio Products | Voltage Range | 1 ~ 4V |
| Voltage - Rated | 3V | Termination | PC Pins |
| Technology | Magnetic | Sound Pressure Level (SPL) | 80dB @ 3V, 10cm |
| Size / Dimension | 0.472" Dia (12.00mm) | Series | SD |
| Ratings | - | Port Location | Top |
| Packaging | Bulk | Other Names | 445-2530 445-2530-1 445-2530-1-ND SD1209T3A1 |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Zero-Peak Signal | Height - Seated (Max) | 0.354" (9.00mm) |
| Frequency | 2.048kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Magnetic 3V 100mA 2.048kHz 80dB @ 3V, 10cm Through Hole PC Pins |
| Current - Supply | 100mA | Approvals | - |
