SD1209T5-A1

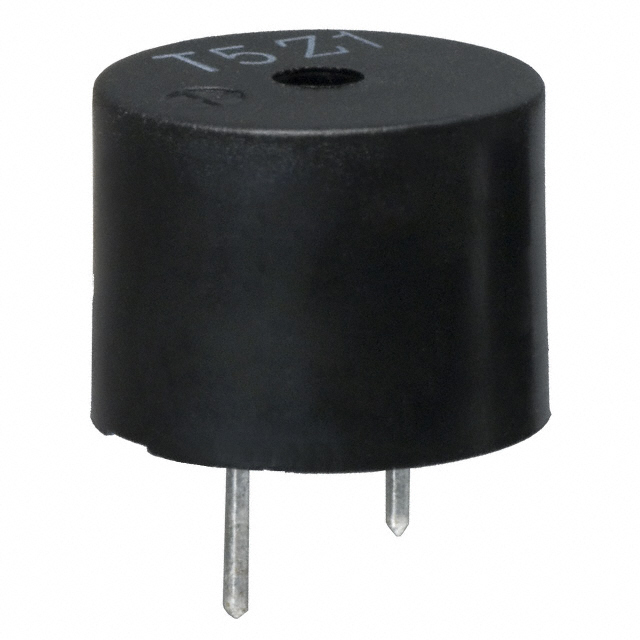

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD1209T5-A1 with confidence from Components-World.HK, 1 Year Warranty
Dowload SD1209T5-A1 Details in PDFSee Product Specifications for product details.
Buy SD1209T5-A1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD1209T5-A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 3-6V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.612 | $0.484 | $0.442 | $0.413 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $0.386 | $0.351 | $0.327 | $0.307 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD1209T5-A1 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 3-6V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76108 pcs | Data sheet | SD Series Datasheet |
| Category | Audio Products | Voltage Range | 3 ~ 6V |
| Voltage - Rated | 5V | Termination | PC Pins |
| Technology | Magnetic | Sound Pressure Level (SPL) | 80dB @ 5V, 10cm |
| Size / Dimension | 0.472" Dia (12.00mm) | Series | SD |
| Ratings | - | Port Location | Top |
| Packaging | Bulk | Other Names | 445-2531 445-2531-1 445-2531-1-ND SD1209T5A1 |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Zero-Peak Signal |
| Height - Seated (Max) | 0.354" (9.00mm) | Frequency | 2.048kHz |
| Duration | - | Driver Circuitry | Transducer, Externally Driven |
| Detailed Description | Buzzers Transducer, Externally Driven Magnetic 5V 60mA 2.048kHz 80dB @ 5V, 10cm Through Hole PC Pins | Current - Supply | 60mA |
| Approvals | - |
