Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - RF > SD1275

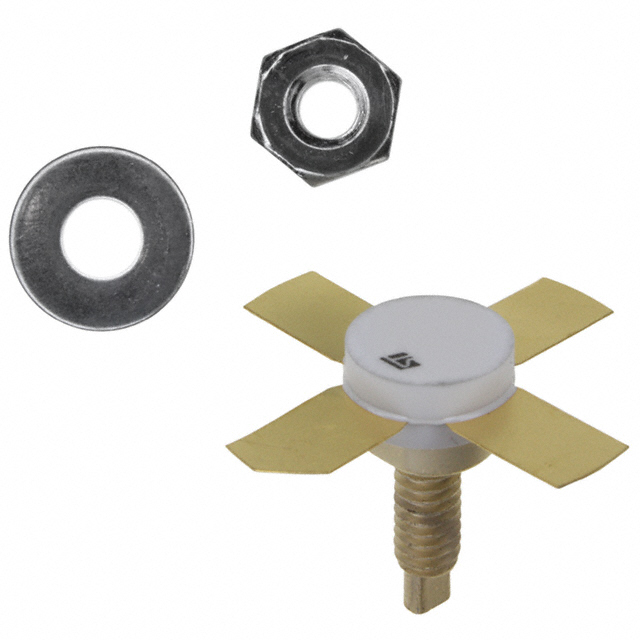

SD1275

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD1275 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SD1275
Manufacturer	STMicroelectronics
Description	TRANS NPN RF MICROWAVE VHF M135
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1970 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$21.169	$19.884

Product parameter
Data sheet

Product parameter

Part Number	SD1275	Manufacturer	STMicroelectronics
Description	TRANS NPN RF MICROWAVE VHF M135	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1970 pcs	Data sheet	SD1275
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	16V
Transistor Type	NPN	Supplier Device Package	M135
Series	-	Power - Max	70W
Packaging	Bulk	Package / Case	M135
Other Names	497-5455 SD1275-ND	Operating Temperature	200°C (TJ)
Noise Figure (dB Typ @ f)	-	Mounting Type	Chassis, Stud Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gain	9dB	Frequency - Transition	-
Detailed Description	RF Transistor NPN 16V 8A 70W Chassis, Stud Mount M135	DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 250mA, 5V
Current - Collector (Ic) (Max)	8A
